A Bernoulli filter is a self-cleaning automatic filter widely used in various industrial applications to continuously filter liquid media, especially water. It operates on the physical principle of the Bernoulli effect, where the movement of a medium creates a low pressure, effectively removing contaminants without interrupting the filtration process. This system is particularly advantageous in applications that require continuous filtration without halting the flow or manually cleaning the filter frequently. Typical applications include water treatment, industrial cooling systems, and process water filtration.
Operating Principle of the Bernoulli Filter
The Bernoulli effect states that as the speed of a medium, like water or air, increases, the pressure in that area decreases. The Bernoulli filter leverages this effect to automate the cleaning of the filter surface. When contaminants and deposits accumulate on the filter surface, a special, movable cleaning plate initiates the cleaning process. This plate creates a low pressure through its movement, which causes the contaminants to detach from the filter surface and be directed into the wastewater or the filter’s dirt collection area. The filter operates without interrupting the main flow, allowing for continuous filtration without maintenance downtime.
Structure and Mechanism
The Bernoulli filter primarily consists of a housing with an integrated filter surface, a movable cleaning plate, sensors, and a control unit. The filter surface is often made of stainless steel or specialized plastic and can be selected in different filtration grades depending on the requirement. The cleaning plate is designed to be hydraulically or pneumatically controlled, effectively removing dirt.
The filter is equipped with a differential pressure sensor that measures the pressure difference before and after the filter surface. When this differential pressure exceeds a specified threshold, the cleaning process is automatically activated. The Bernoulli filter requires minimal energy and is therefore highly efficient. Since the cleaning is automatic, the maintenance effort is reduced, and operating costs are kept low.
Advantages of the Bernoulli Filter
A Bernoulli filter offers numerous advantages that make it particularly attractive for industrial use. These include:
- Continuous Operation: The filter does not need to be shut down for cleaning, preventing interruptions in production.
- Low Maintenance: The automatic cleaning significantly reduces the need for maintenance, lowering operating costs.
- Long Service Life: High-quality materials ensure a long lifespan and system reliability.
- Low Operating Costs: With low energy consumption and reduced maintenance, operating costs remain low.
- Adaptability: The filter can be adapted to different filtration grades, making it suitable for a variety of applications.
Application Areas
Bernoulli filters are especially used in areas requiring continuous filtration. These include:
- Water Treatment: They remove suspended solids and impurities from water used in cooling circuits or irrigation.
- Power Plants and Industrial Facilities: In large industrial cooling systems and power plants, the filter ensures reliable water supply.

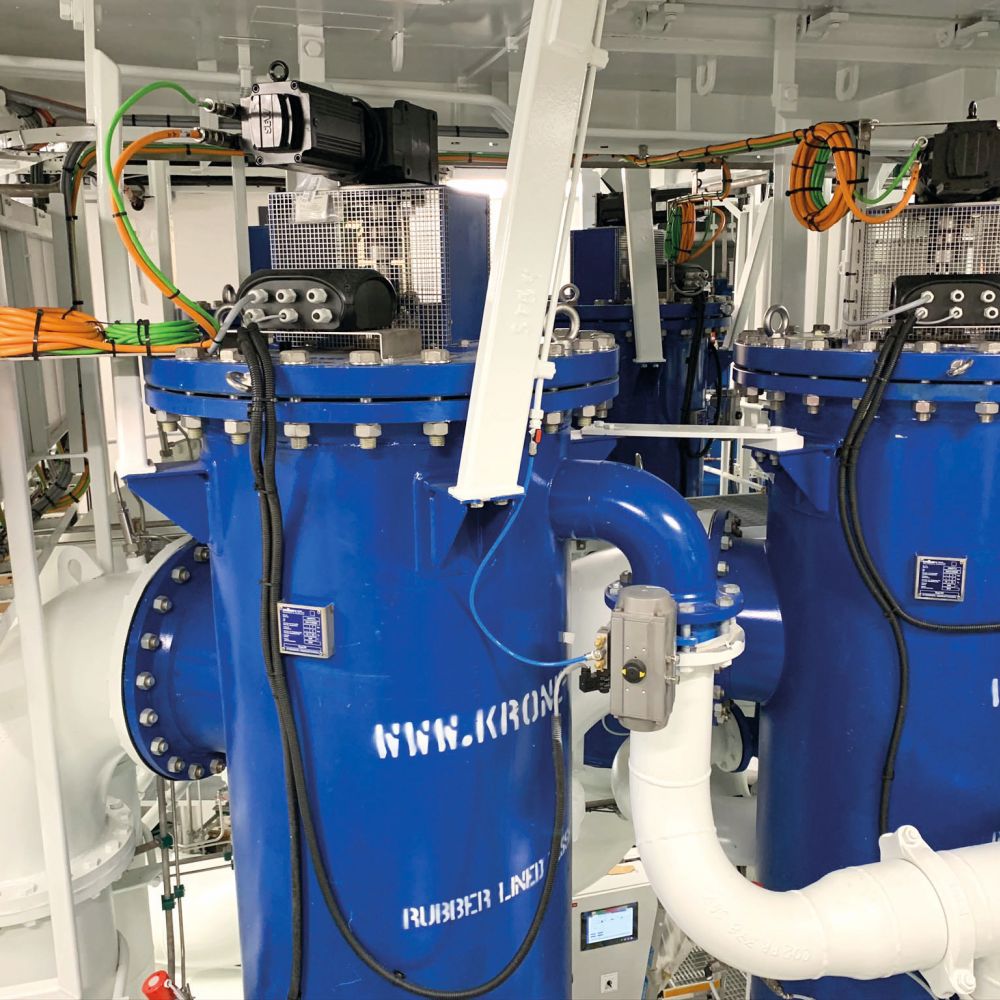

- Shipbuilding: The filters are suitable for seawater filtration and are used on ships and offshore installations.
In summary, the Bernoulli filter offers a reliable, energy-efficient, and cost-effective solution for removing impurities from water and other liquids without interrupting the filtration process.
10-Point Summary:
- Bernoulli Filter: Self-cleaning filter for continuous filtration.
- Bernoulli Effect: Physical principle creates low pressure for cleaning.
- Operating Mechanism: Movable cleaning plate detaches dirt from filter surface.
- Differential Pressure Sensor: Activates cleaning at increased pressure differential.
- Energy Efficiency: Low energy consumption, cost-effective.
- Low Maintenance Costs: Automatic cleaning minimizes maintenance requirements.
- Long Service Life: Durable materials for high reliability.
- Adjustable Filtration Grades: Suitable for various applications.
- Applications: Water treatment, industrial cooling, shipbuilding.
- Advantages: Reduces downtime, operating costs, and maintenance needs.
